Model D Water Rocket Launch pad Setup

The video on the right will show you step-by-step instructions on how to use the Model D water rocket launch pad. The steps are reiterated in the instructions below.

If you have any other question on setup, email or give us a call and we will help you out!

STEP 1

Unravel both the pressure line and launch release cord to a safe, designated point.

Screen Shot 2017-03-29 at 6.40.16 PM.png

STEP 2

Attach launcher pressure hose to compressor line.

STEP 3

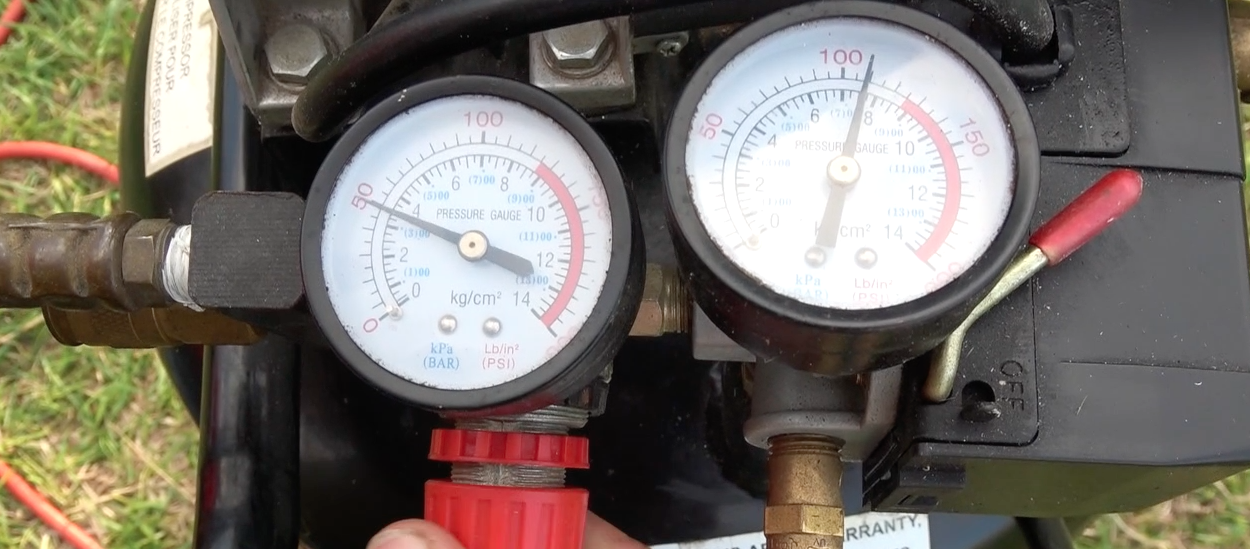

Turn air compressor to max.

STEP 4

Measure desired quantity of water and fill the rocket. You then can place rocket on the launch pad and slide the locking plate over.


Screen Shot 2017-03-29 at 10.00.07 PM.png

STEP 6

Use the black knob to set your desired pressure limit while simultaneously holding the black release button. You are now ready to launch!



Step 7

Press the red button to launch!



Step 8

Use the optional air valve to depressurize rocket and remove it from the launch pad without launching. (NOTE: this is an OPTIONAL attachment. See our Rocket Accessories for more information.)
