Model Z Indoor Rocket Launch pad Setup

The video on the right will show you step-by-step instructions on how to use the Model Z indoor launch pad. The steps are reiterated in the instructions below.

If you have any questions on setup, email or give us a call and we will help you out!



STEP 1

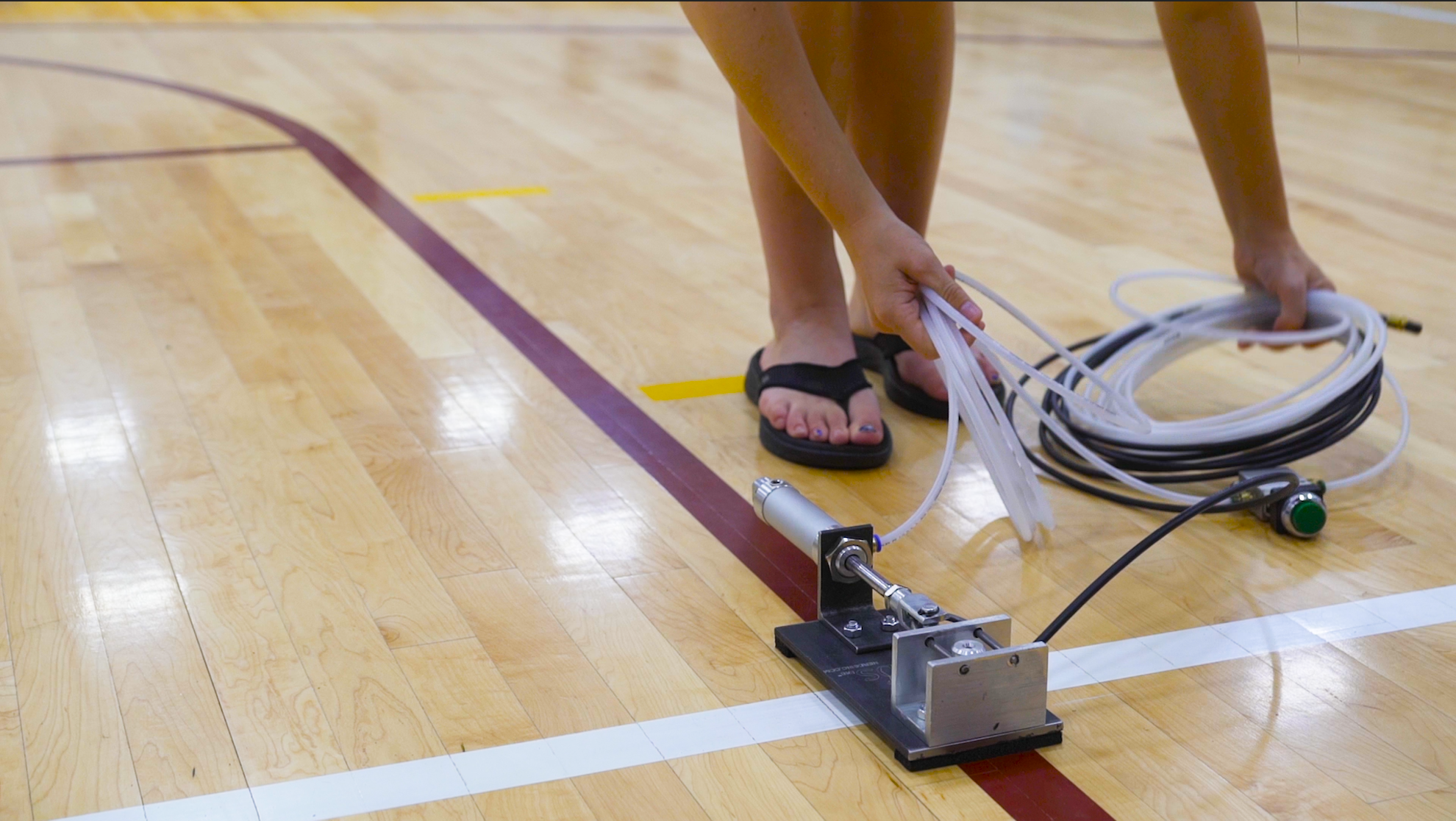

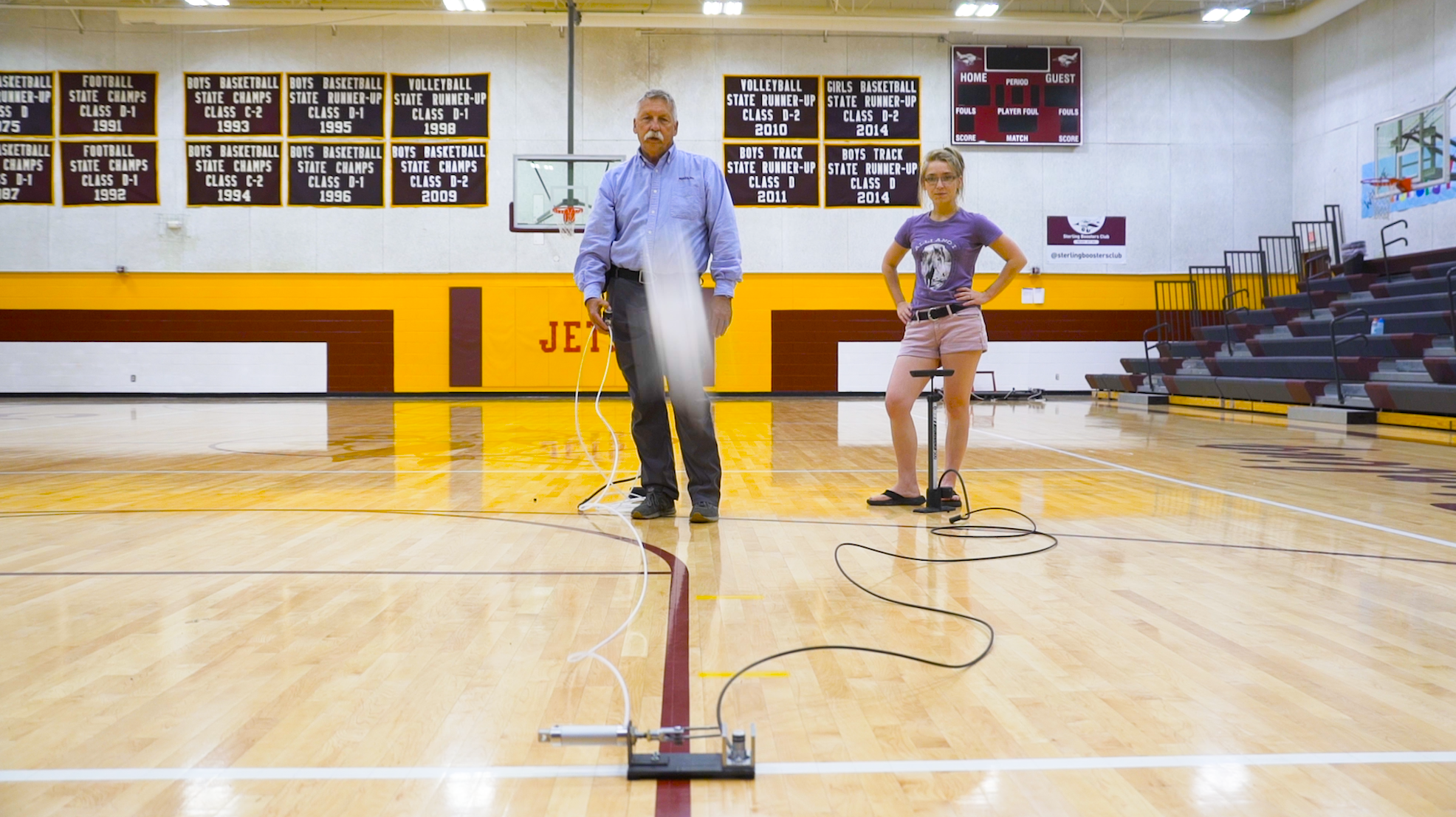

Unravel both pressure lines to a safe, designated point.

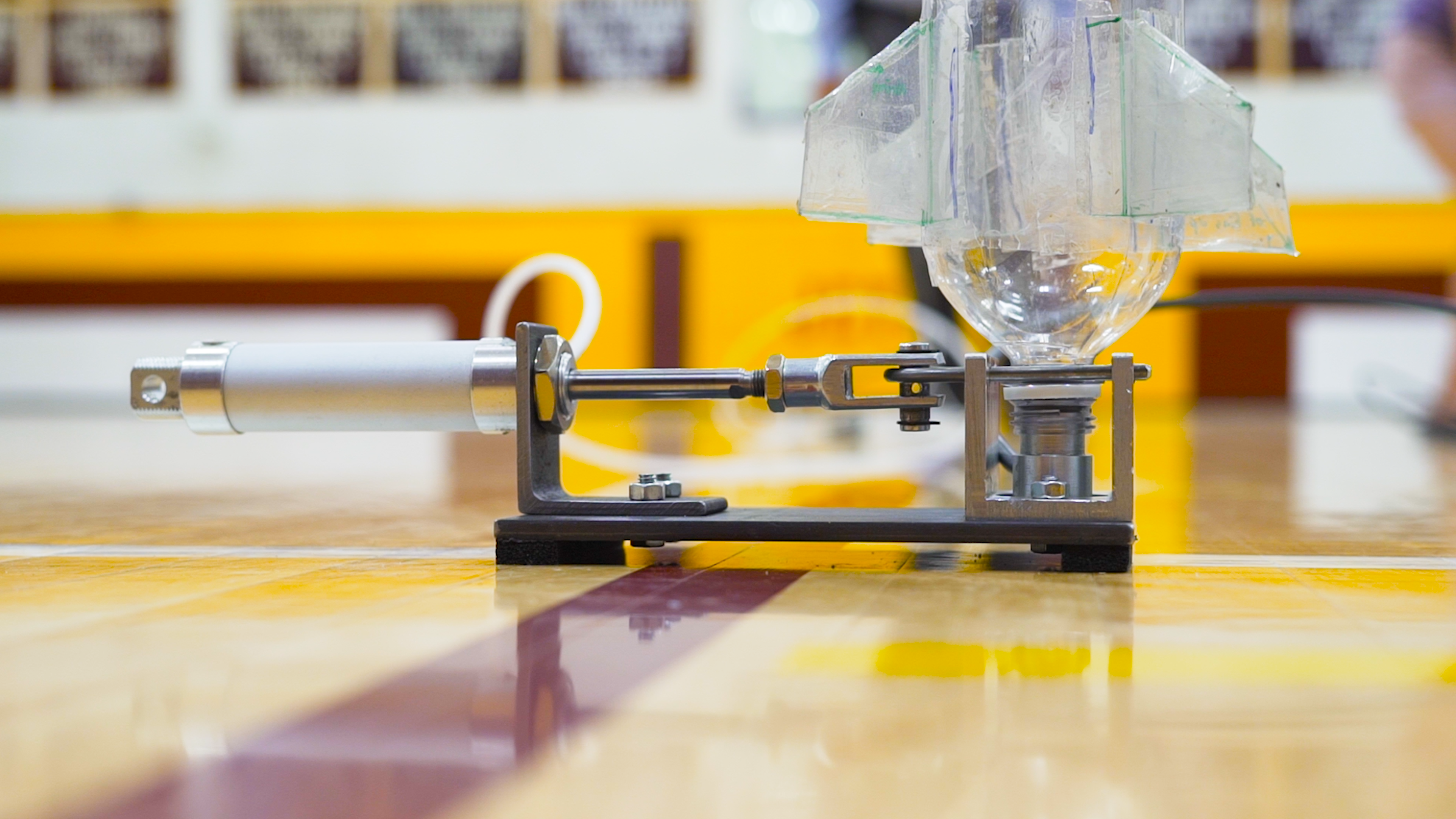

Featuring soft padding on the baseplate, the Model Z protects floors of all kinds from scratches and marks!

Featuring soft padding on the baseplate, the Model Z protects floors of all kinds from scratches and marks!

Screen Shot 2019-07-10 at 7.55.59 PM.png
Screen Shot 2019-07-10 at 8.09.32 PM.png

STEP 2

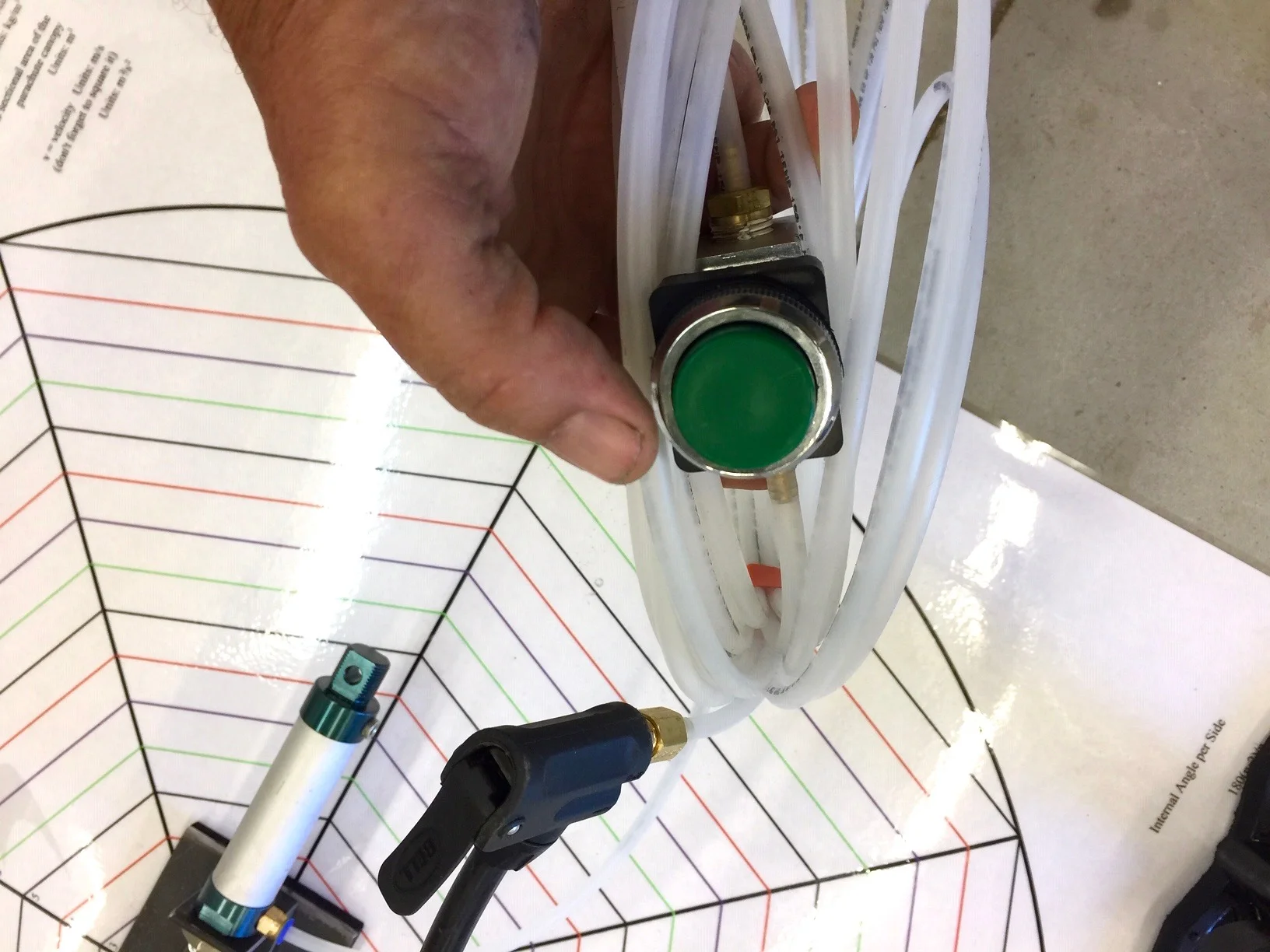

Connect bicycle pump to black air line, making sure the valve is closed.

(Students pressurize their rocket with air, using a bicycle pump with a gauge.)



STEP 3

The event supervisor connects a bicycle pump to the translucent (white) Air Line.

Screen Shot 2019-07-10 at 8.10.02 PM.png

Screen Shot 2019-07-10 at 7.56.34 PM.png


STEP 4

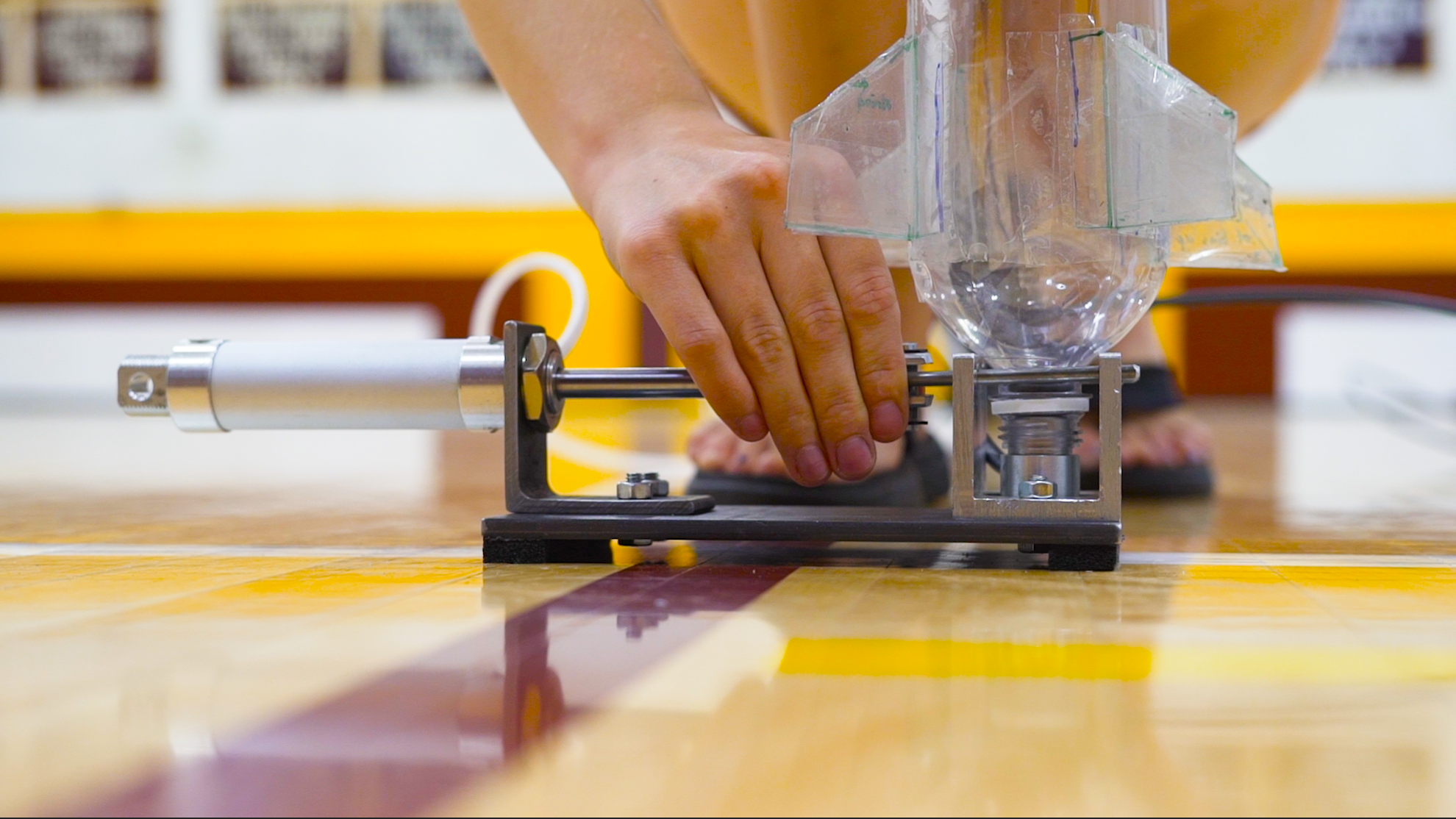

Load rocket onto the launch pad and slide the Restraining Pin around the nozzle of the rocket.



STEP 5

Pressurize rocket via the black air line. (This is accomplished by the student.)

The supervisor then pressurizes the white air line to approximately 80-100 psi. (This usually takes one or two strokes.)




STEP 6

You are now ready to launch!

Use the green button to launch the rocket!
